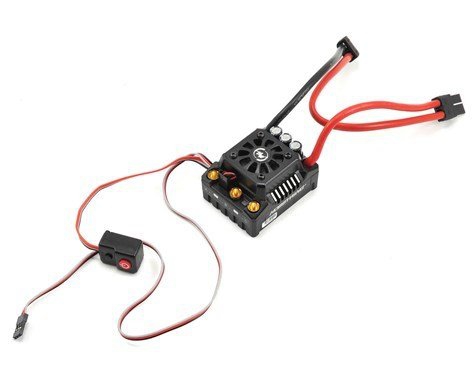

Ezrun Max8 V3 Brushless esc for 1:8
High Reliability & Durability
Reliable hardware combine with advanced software allows the ESC
to no only provide extremely high output but also protect itself timely
from damages caused by overload. It significantly reduces the
possibility of getting damaged by heavy load and improves the
reliability and durability.
Get Flexibility & Versatility
The ESC has strong outbreak and stable output
so vehicle can do different moves without a problem, no matter
aggressive start-up and wheelie, 720-degree flip (*), High speed running
on straight tracks or flying over slopes. It always provide the power
more than sufficient. Besides driver can adjust relevant parameters for
smooth and soft start-up.
Applicable to all weather conditions
Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.
Super Built-in BEC
The world’s 1st 1:8th scale ESC adopted the super built-in BEC with the max output current of up to 15A and switchable
output voltage (6-7,2V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers.
Advanced and Secure Electronic Switch
The electronic switch with the lifespan of over 50 000 times of
switching on & off features a completely waterproof, dust-proof and
shock-resistant design. Completely solved problems like stuck reed and
rust contact points caused by dust and moisture, switching of
automatically caused by violent dash (like landing after flying over
slopes) conventional mechanical switches often have.
Plug and Play
Standard 6.5mm gold plated connectors at the ESC’s output end are perfectly compatible with stock motor connectors of many popular 1:8 scale monster trucks like Traxxas and HPI- Moreover Traxxas style or Deans(T-plug)’s have been soldered to the ESC’s
input end for different battery connectors, driver can plug and play
and free from possible re-soldering work. (different models for TRX and deans plugs)
Wide applicability
The ESC provides the optimal upgrade solution for many popular 1:8th scale monster trucks like Traxxas E-Revo & E-Maxx, HPI Savage and Thunder Tiger E-Mat. It is also applicable to the other trucks and buggies.
Almost Maintenance free
The whole ESC except the cooling fan is
basically maintenance free. Besides the fan has also adopted the special
anti-shock design, reduced damage brought by frequent jumps of the
vehicle, greatly reduced maintenance work to the fan.
LiPo / NiMH Cells: 3-6S LiPo / 9-18S NiMH
BEC Output 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
BEC voltage: 6V/7.2V
Size / Weight 59.8(L)*48(W)*36.8(H)/173.5g

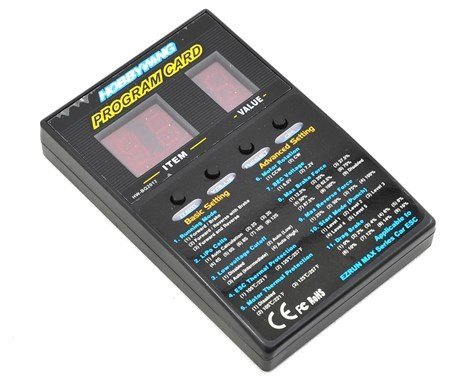

Programming Port FAN/PRG Port
Plug XT90
