Specifications
| Stator Diameter |
40 mm (1.57 in) |
| Stator Thickness |
35 mm (1.024 in) |
| No. of Stator Arms |
12 |
| Magnet Poles |
10 |
| Motor Wind |
9 Turn Delta |
| Motor Wire |
21 - Strand 0.29mm |
| Motor Kv |
500KV RPM / Volt |
| No-Load Current (IO) |
2.02 Amps @ 10v |
| Motor Resistance (RM) |
0.016 Ohms |
| Max Continuous Current |
84 Amps |
| Max Continuous Power |
3500 Watts |
| Weight |
460 Grams (16.22 oz) |

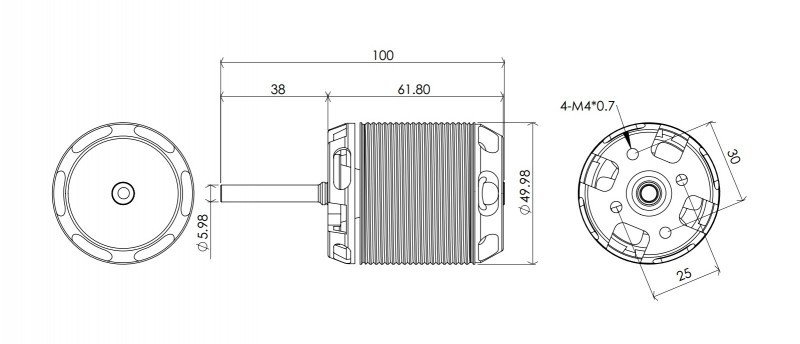

| Outside Diameter |
49.98 mm (1.97 in) |
| Shaft Diameter |
5.98 mm (0.235 in) |
| Body Length |
61.8 mm (2.43 in) |
| Overall Shaft Length |
|
| Max Lipo Cell |
12s |
| Peak Current |
104A (5 seconds) |
| Peak Power |
4600 Watts (5 seconds) |
| Motor Timing |
5deg |
| Drive Frequency |
8kHz
|
