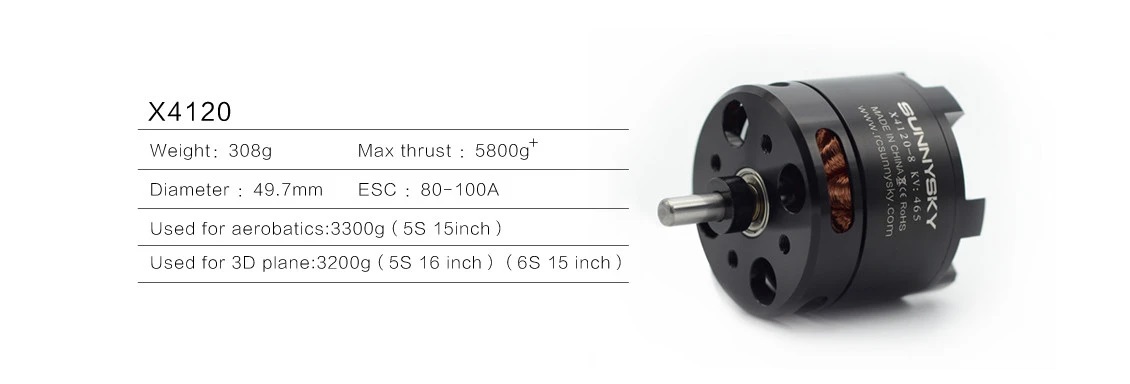

X4120- KV465 PLANE MOTOR
X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.
Stainless steel solid shaft
The motor shaft is
made of 420 stainless steel material imported from Japan. After heat
treatment, the shafts are improved to high strength, excellent
ductility, and better resistance to bending and breaking.
6061-T6 Aviation aluminum alloy
Top and bottom
caps are made of high strength 6061-T6 aviation aluminum alloy, with
high hardness and high strength of extension, which can ensure reliable
performance of motors.
Imported NMB bearings
X series uses customized
NMB mini bearings imported from Japan, which provide longer life, quiet
and stable operation of these motors.
| Stator Diameter | 41mm | Rotor Diameter | 49.7mm |
|---|---|---|---|
| Stator Thickness | 20mm | Body Length | 49mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 6S |
| No.of Rotor Poles | 14 | ESC | 100A |
| Motor Kv | 465 | Recommended Prop(inch) | 6S(EOLO15*8/15*10/16*8) |
| No-load current | 1.5A/10V | ||
| Motor Resistance | 22.5mΩ | ||
| Max Continuous Current | 97A/30s | ||
| Max Continuous Power | 2425W | ||
| Weight |
308g |
||
|
|
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | RPM | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|---|
| EOLO 15*8 | 22.2 | 2.3 | 500 | 51.06 | 9.79 | 2762 | 126℃ 1min |
| 3.7 | 750 | 82.14 | 9.13 | 3300 | |||
| 5.3 | 1000 | 117.66 | 8.50 | 3805 | |||
| 7.1 | 1250 | 157.62 | 7.93 | 4277 | |||
| 9.1 | 1500 | 202.02 | 7.43 | 4610 | |||
| 11.1 | 1750 | 246.42 | 7.10 | 4982 | |||
| 13.4 | 2000 | 297.48 | 6.72 | 5292 | |||
| 15.7 | 2250 | 348.54 | 6.46 | 5680 | |||
| 18.25 | 2500 | 405.15 | 6.17 | 5915 | |||
| 21 | 2750 | 466.2 | 5.90 | 6147 | |||
| 23.8 | 3000 | 528.36 | 5.68 | 6409 | |||
| 29.8 | 3500 | 661.56 | 5.29 | 6890 | |||
| 37 | 4000 | 821.4 | 4.87 | 7350 | |||
| 66.2 | 5800 | 1469.64 | 3.95 | 8768 | |||
| 25 | 2.3 | 500 | 57.5 | 8.70 | 2760 | ||
| 3.5 | 750 | 87.5 | 8.57 | 3300 | |||
| 4.9 | 1000 | 122.5 | 8.16 | 3810 | |||
| 6.4 | 1250 | 160 | 7.81 | 4300 | |||
| 8.2 | 1500 | 205 | 7.32 | 4557 | |||
| 10.1 | 1750 | 252.5 | 6.93 | 5000 | |||
| 12.2 | 2000 | 305 | 6.56 | 5293 | |||
| 14.3 | 2250 | 357.5 | 6.29 | 5660 | |||
| 16.4 | 2500 | 410 | 6.10 | 5840 | |||
| 19 | 2750 | 475 | 5.79 | 6150 | |||
| 21.5 | 3000 | 537.5 | 5.58 | 6466 | |||
| 27 | 3500 | 675 | 5.19 | 6890 | |||
| 33.2 | 4000 | 830 | 4.82 | 7328 | |||
| 47.2 | 5000 | 1180 | 4.24 | 8111 | |||
| 63.9 | 6000 | 1597.5 | 3.76 | 8855 | |||
| 85 | 7150 | 2125 | 3.36 | 9473 | |||
| EOLO 16*8 | 22.2 | 2.2 | 500 | 48.84 | 10.24 | 2350 | 130℃ 1min |
| 3.4 | 750 | 75.48 | 9.94 | 2890 | |||
| 4.9 | 1000 | 108.78 | 9.19 | 3359 | |||
| 6.6 | 1250 | 146.52 | 8.53 | 3730 | |||
| 8.4 | 1500 | 186.48 | 8.04 | 4065 | |||
| 10.5 | 1750 | 233.1 | 7.51 | 4385 | |||
| 12.6 | 2000 | 279.72 | 7.15 | 4700 | |||
| 14.8 | 2250 | 328.56 | 6.85 | 4920 | |||
| 17.15 | 2500 | 380.73 | 6.57 | 5220 | |||
| 19.6 | 2750 | 435.12 | 6.32 | 5504 | |||
| 22.4 | 3000 | 497.28 | 6.03 | 5700 | |||
| 28.2 | 3500 | 626.04 | 5.59 | 6105 | |||
| 34.5 | 4000 | 765.9 | 5.22 | 6478 | |||
| 49 | 5000 | 1087.8 | 4.60 | 7235 | |||
| 80.8 | 6780 | 1793.76 | 3.78 | 8272 | |||
| 25 | 2 | 500 | 50 | 10.00 | 2393 | ||
| 3.1 | 750 | 77.5 | 9.68 | 2930 | |||
| 4.4 | 1000 | 110 | 9.09 | 3370 | |||
| 6 | 1250 | 150 | 8.33 | 3750 | |||
| 7.6 | 1500 | 190 | 7.89 | 4060 | |||
| 9.5 | 1750 | 237.5 | 7.37 | 4350 | |||
| 11.3 | 2000 | 282.5 | 7.08 | 4650 | |||
| 13.4 | 2250 | 335 | 6.72 | 4935 | |||
| 15.4 | 2500 | 385 | 6.49 | 5220 | |||
| 17.7 | 2750 | 442.5 | 6.21 | 5450 | |||
| 20 | 3000 | 500 | 6.00 | 5700 | |||
| 25.2 | 3500 | 630 | 5.56 | 6225 | |||
| 30.8 | 4000 | 770 | 5.19 | 6501 | |||
| 43.9 | 5000 | 1097.5 | 4.56 | 7255 | |||
| 59.8 | 6000 | 1495 | 4.01 | 7770 | |||
| 79.5 | 7000 | 1987.5 | 3.52 | 8401 | |||
| 97.4 | 8150 | 2435 | 3.35 | 9078 |
